View all chargers

Alfen

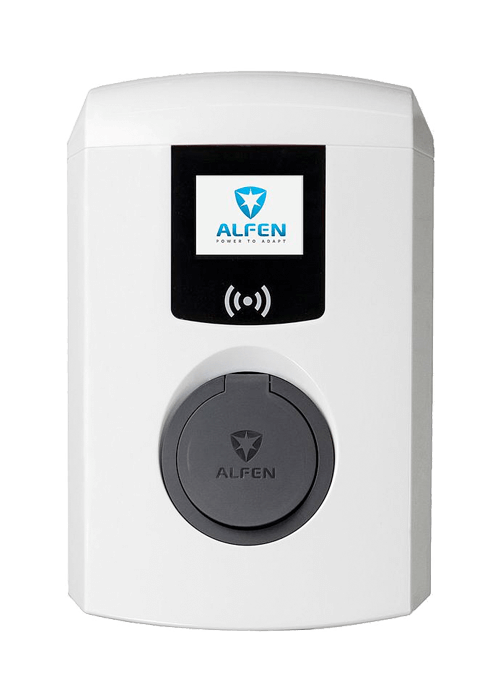

Alfen Eve Single Pro-line

ChargePanel Platform Connection

Network Migration to ChargePanel

OCPP Connection to CSMS

CPO Network Operations

The Alfen Eve Single Pro-line Wallbox is a charging unit designed for both home and business applications. It can be installed on walls or poles and features a color screen with a logo upload facility. The wallbox is equipped with an integrated RFID reader for user identification and a MID-meter for financial settlement. It connects to the internet via LTE/ethernet, with data accessible through a third-party management system provider. The Eve Single Pro-line offers a charging capacity ranging from 3.7kW to 22kW and can be equipped with either a power outlet or a fixed cable. The unit also supports dynamic load balancing in cooperation with a smart meter. Alfen Eve Single Pro-line is compatible with ChargePanel's EV Charging Management Software.

ac

Type

22 kW

Max Power

direct

OCPP Connection

Alfen Eve Single Pro-line

Specifications - Alfen Eve Single Pro-line

Manufacturer:

Alfen

Product Name:

Alfen Eve Single Pro-line

Current Type:

ac

Supported Power:

3.7kW - 22kW

Socket Type:

Type 2

OCPP Connection:

direct

OCPP Notes:

Custom program found at https://alfen.com/downloads

Hardware Agnostic Platform

Charge Station Compatibility Testing

ChargePanel provides charge station compatibility testing for customers and vendors with certification upon request. Smart charging functionality requires OCPP (JSON), version 1.6 and above. The list is continuously updated as new charging stations come onto the market. If the charging station you are looking for is not listed below, please contact us.

Request Compatibility Testing
